ماكينة التقطيع بالبلازما MicroStep PLS 7501.25PG

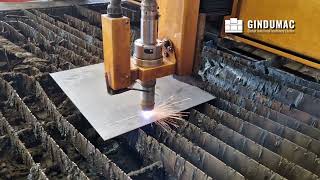

This 3-axis MicroStep PLS 7501.25PG plasma cutting machine was manufactured in 2008. It features a robust MicroStep MSNC500 control system and dual cutting capabilities with a HPR 260 AGC plasma and an acetylene gas burner. The machine offers a maximum cutting thickness of 50 mm and operates efficiently within a large working field. If you are looking to get high-quality cutting capabilities, consider the MicroStep PLS 7501.25PG machine we have for sale. Contact us for more information.
Number of portals: 1
Number of Z-axes: 2
Number of burners: 2
Max cutting thickness: 50 mm
Working speeds: 0–100 mm/s
Working field – longitudinal movement: 7500 mm
Working field – cross movement: 2500 mm
Working field – vertical movement (plasma): 150 mm
Working field – vertical movement (gas): 200 mm
Working field – vertical movement (gas-rotator): 200 mm
Drilling head BEM 12 vertical movement: 80 mm
Max working zone width: 4000 mm
Max working zone length: 35,000 mm
Max deviation longitudinal: 0.5 mm / 3000 mm
Max deviation cross: 0.5 mm / 2500 mm
Electrical coverage (mechanical part): IP 43
Drives (Control Technique):Longitudinal axis: 2 × DCM 6C 30/14 A1Cross axis: 2 × DCM 3B 35/06 A1Vertical axis: 2 × DCM 2C 30/03 B1
Longitudinal axis: 2 × DCM 6C 30/14 A1
Cross axis: 2 × DCM 3B 35/06 A1
Vertical axis: 2 × DCM 2C 30/03 B1
Gear ratios:Longitudinal axis (belt): i = 14.81483886 mm/revCross axis (belt): i = 13.33335498 mm/revVertical axis (belt + screw): i = 2 mm/rev
Longitudinal axis (belt): i = 14.81483886 mm/rev
Cross axis (belt): i = 13.33335498 mm/rev
Vertical axis (belt + screw): i = 2 mm/rev
Ambient temperature: 5–40 °C
Max relative air humidity: 90% at 20 °C
Atmospheric pressure: 84–107 kPa
Dustiness: 200 mg/m³
Environment type: Common (STN 330300, exception operational temps N32)
Additional equipment
Plasma source: 1 × HPR 260 AGC (58 mm)
Gas burner: 1 × acetylene (Bir), including gas rotator
Drilling head: BEM 12
application type: Cutting
Location: Lithuania
machine type: Plasma Cutting Machine
control unit brand: MicroStep
Control Brand: MicroStep
Control Model: IMSNC
Machine Depth: 10169 mm
Number of Axes: 3
