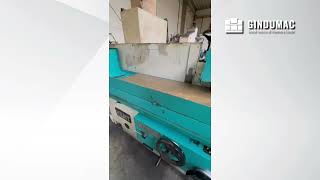

آلة طحن السطح Kent KGS 615 WMA1

This Kent KGS 615 WMA1 surface grinding machine was manufactured in 2008. It features a robust table clamping area of 1500 x 600 mm, supporting a maximum load of 1300 kg. The machine is equipped with a powerful grinding spindle motor of 7.5 kW and a standard grinding wheel size of 355 x 50.8 x 127 mm. Consider the opportunity to buy this Kent KGS 615 WMA1 surface grinding machine. Contact us for more information about this machine.
Machine Benefits
Technical Machine Benefits
Table clamping area: 1500 x 600 mm / max. Table load (with magnet): 1300 kg longitudinal table travel: 1600 mm / table slots, number/width: 3/16 pcs/mm / table feed: 7-25 m/min
Vertical y distance from table to spindle center: 600 mm / vertical handwheel pitch: 0. 002 mm / feed per handwheel revolution: 0. 5 mm / automatic grinding feed ahd: 0. 005-0. 04 mm / automatic grinding feed wm1: 0. 002-0. 2 mm / vertical rapid traverse: 230 mm/min / transverse z travel: 660 mm / transverse feed per stroke: 0. 1-12 mm / transverse rapid traverse: 1250 mm/min / handwheel pitch: 0. 02 mm / feed per handwheel revolution: 5 mm
Grinding spindle motor: 7. 5 kw / grinding spindle speed: 1450 rpm
Grinding spindle motor: 7. 5 kw / grinding spindle speed: 1450 rpm
application type: Grinding
Location: Germany
machine type: Surface Grinding Machine
Machine Depth: 6200 mm
